PVC Strip Curtains: Save Energy, Cut Noise—Ready Now?

If you manage a chiller doorway or a busy dock, you’ve probably wrestled with temperature loss and chaotic foot traffic. That’s why pvc strip curtains keep popping up in my notes from plant tours—simple, tough, and weirdly effective.

Industry trend, briefly: operators are shifting from “one-size-fits-all” plastic to dedicated low-temperature blends, mainly to cut compressor runtime and frost. In fact, energy managers tell me the ROI often lands inside a year, sometimes faster in 24/7 cold stores. And yes, there’s a sustainability subtext—less leakage, fewer cycle spikes.

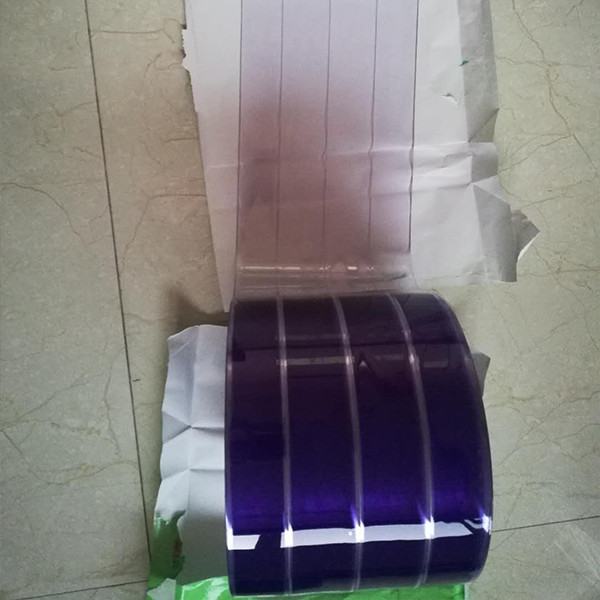

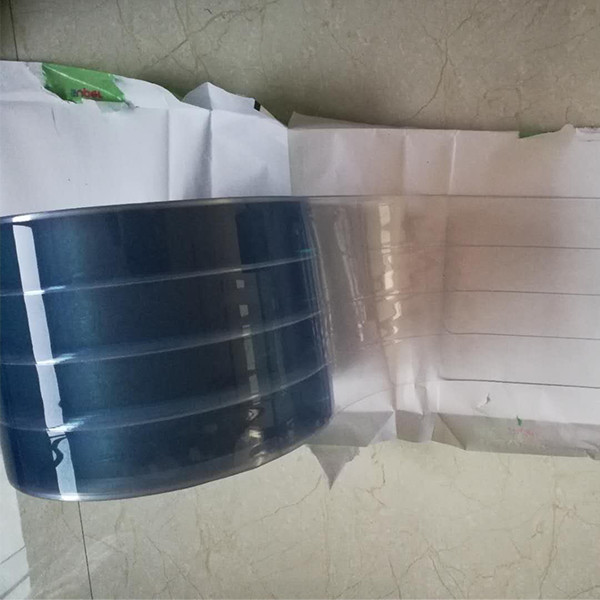

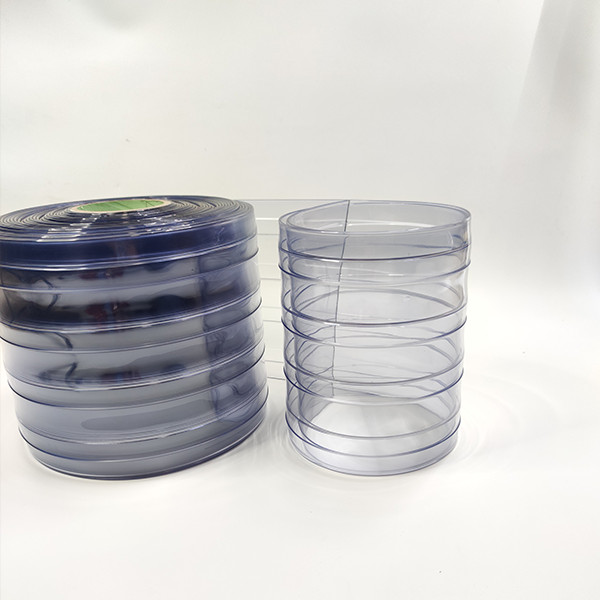

Product snapshot: Low Temperature Door Curtains

Origin: Houligezhuang Village, Langfang, Hebei, China. Working temp: −40 ℃ to +50 ℃. Section options: plane, ribbed, nylon-line reinforced. Colors: light blue, yellow white, blue. Conventional sizes: 200×2×50 m; 300×3×50 m.

Specifications (typical, real-world use may vary)

Why ribbed? Better scratch resistance from forklift brushes. Why nylon-line? Added tear resistance on high-impact lanes. Many customers say ribbed pays off in busy docks; I tend to agree.

How they’re made (short version)

• Materials: low-temp PVC compound, phthalate-reduced plasticizers, impact modifiers, UV stabilizers; optional anti-microbial additive.
• Method: precision extrusion or calendaring → chill-roll quench for clarity → edge rounding → punch slots for hangers → coil to 50 m rolls.
• Testing: Shore hardness (ASTM D2240), tensile/elongation (ASTM D638), light transmittance (GB/T 2410), cold-bend at −30 ℃, aging (ISO 4892-2).
• Service life: ≈ 3–5 years in −25 ℃ freezers; up to 6–7 years in cool rooms with gentle traffic.

Where they shine

• Cold rooms, blast freezers, food packing lines (HACCP/ISO 22000 programs).
• Pharma warehousing (temperature zoning), bottling lines, dairy docks.
• Dust, bird, and noise control in loading bays; quick traffic flow without doors.

Real feedback? A Shenzhen seafood processor reported ≈ 12% compressor cycle reduction after swapping old strips for pvc strip curtains in 300×3 mm ribbed. Another site—beverage DC in Melbourne—cut icing on thresholds by “a lot” (their words), with nylon-line strips holding up to pallet jacks.

Vendor comparison (quick look)

Customization tips

• Doorway traffic: pedestrians → 200×2 mm; forklifts → 300×3 mm (classic picks for pvc strip curtains).
• Overlap: 50–100% depending on pressure differentials; more overlap = better seal, higher drag.
• Tint: light blue for cold perception and glare control; clear where visibility is critical.

Bottom line: properly specified pvc strip curtains cut energy loss, stabilize temps, and survive daily abuse. For plants running audits, ask for a data sheet with ASTM/ISO results and REACH/RoHS declarations. Flame-retardant grades (e.g., UL 94 V-2) are available on request.

References

1. ASTM D638 – Standard Test Method for Tensile Properties of Plastics.
2. ASTM D2240 – Standard Test Method for Rubber Property—Durometer Hardness.
3. ASTM D1003 – Standard Test Method for Haze and Luminous Transmittance.
4. ISO 4892-2 – Plastics—Methods of exposure to laboratory light sources.
5. GB/T 2410 – Determination of light transmittance and haze of transparent plastics.
6. Regulation (EC) No 1907/2006 (REACH) & 2011/65/EU (RoHS) compliance frameworks.
7. ISO 22000 – Food safety management systems (for facility programs using strip doors).
